Machine Screw Jack

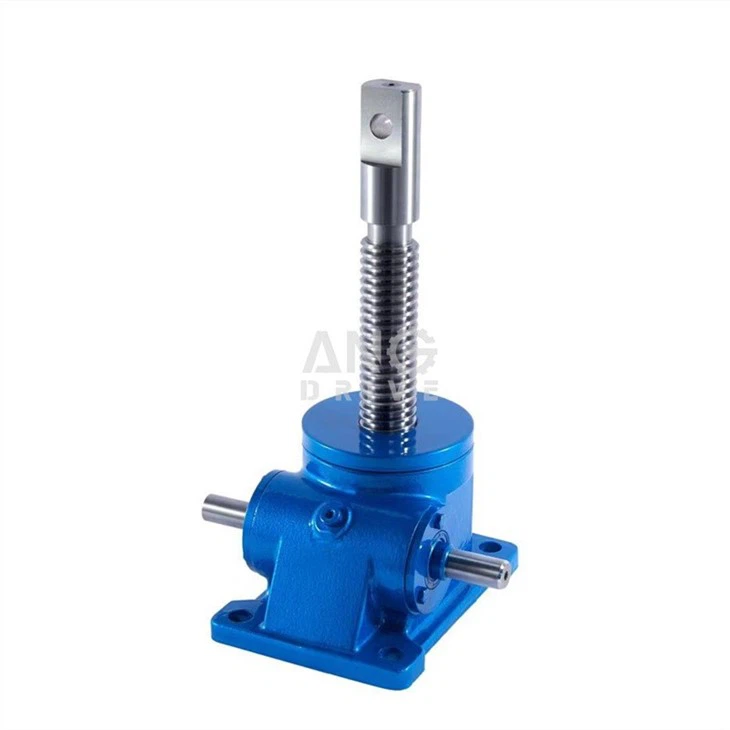

Machine Screw Jack introduction
A screw jack consists of a heavy-duty vertical screw with a load table mounted on its top, which screws into a threaded hole in a stationary support frame with a wide base resting on the ground. A rotating collar on the head of the screw has holes into which the handle, a metal bar, fits. When the handle is turned clockwise, the screw moves further out of the base, lifting the load resting on the load table. In order to support large load forces, the screw is usually formed with Acme threads.
Machine screw jack parameters:
Product model number | SWL 2.5 | SWL 5 | SWL 10 | SWL 15 | SWL 20 | SWL 25 | SWL 35 |
Max Capacity (KN) | 25 | 20 | 100 | 150 | 200 | 250 | 350 |
Lifting screw size | Tr 306 | Tr 407 | Tr 5812 | Tr 5812 | Tr 6512 | Tr 9016 | Tr 10020 |
Gear ratio (P) | 6/1 | 8/1 | 23/3 | 23/3 | 8/1 | 32/3 | 32/3 |
Gear ratio (M) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | 32/1 | 32/1 |
Raise per revolution (mm) (P) | 1.0 | 0.875 | 1.565 | 1.565 | 1.56 | 1.5 | 1.875 |
Weight without spindle or protection tube (Kg) | 7.3 | 16.2 | 25 | 25 | 36 | 70.5 | 87 |
Weight of lifting screw 100 mm (kg) | 0.45 | 0.82 | 1.67 | 1.67 | 2.15 | 4.15 | 5.20 |
Why choose our machine screw jack?
Product photos
Column type
Bolt hole type
T-coping type
Round plate type
Flange input
Shaft end fixed
Screw Jack Structure
General applications
Related screw jack
Our service
1. We supply detailed answers to technical questions.
2. Give our customers high performance, competitive prices, and more suitable transmission solutions.
3. Fast response in English, Arabic, and Chinese languages.
4. Different kinds of payments are available for you.
5. 100 percent current test and debug before delivery.
6. One-year warranty period.
7. Any questions you can contact us, we will respond as soon as possible.
